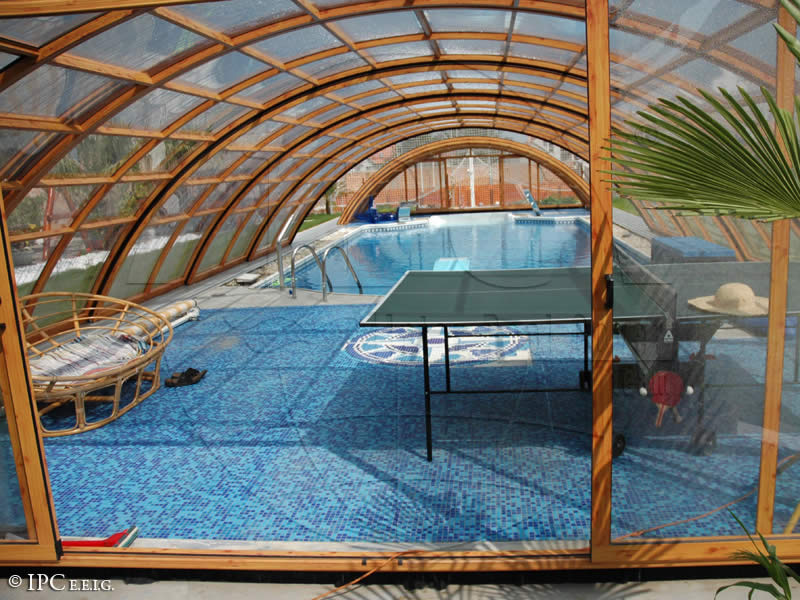

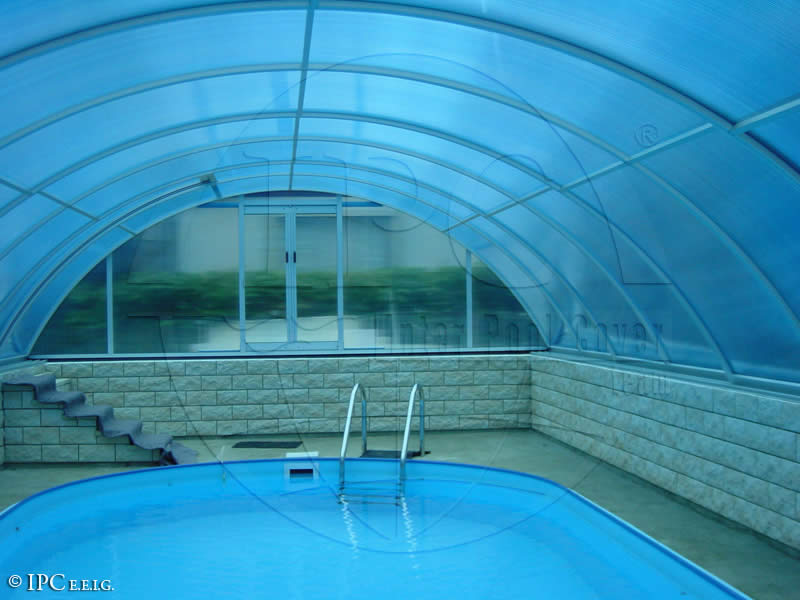

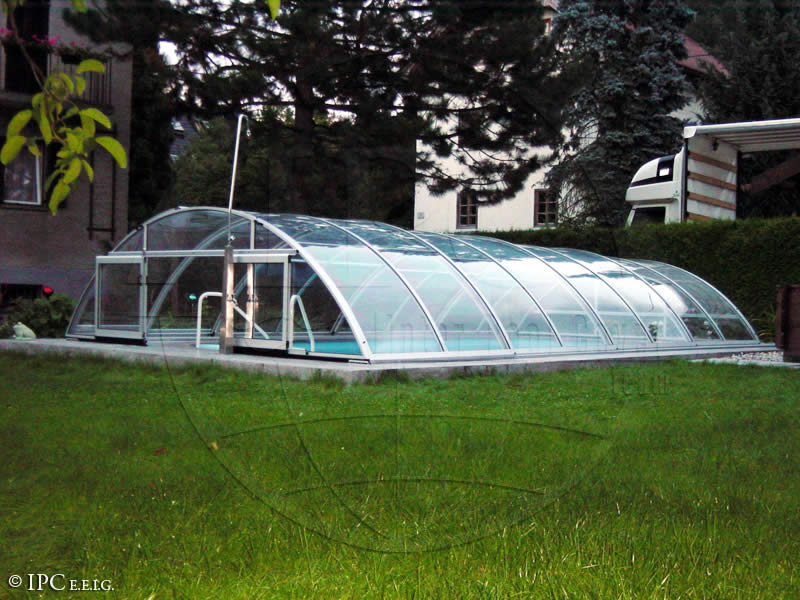

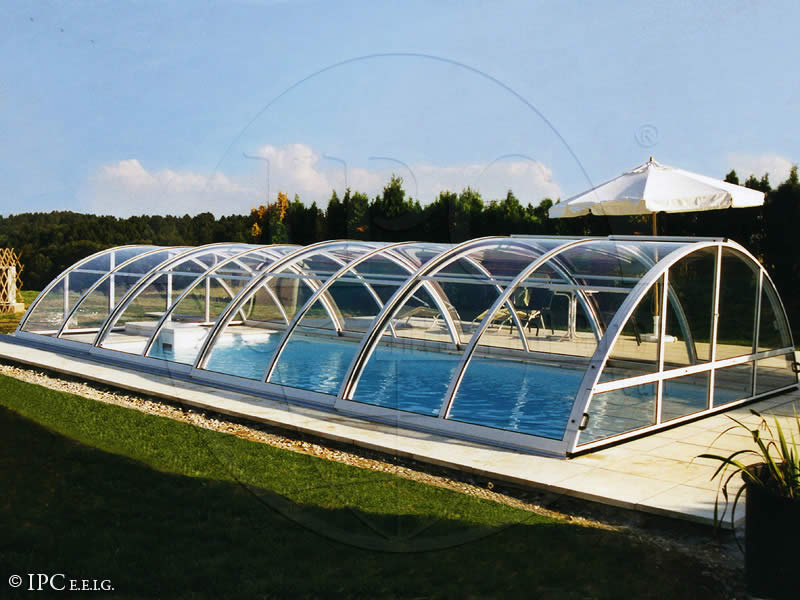

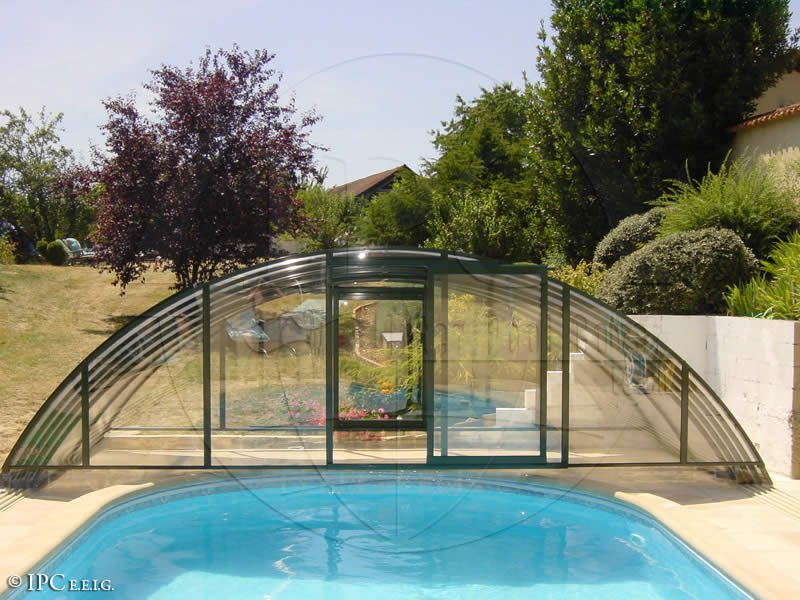

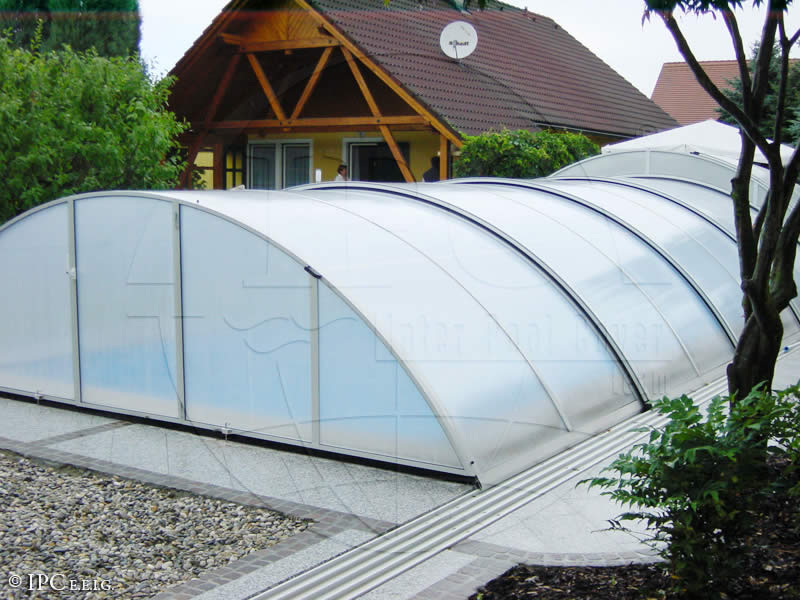

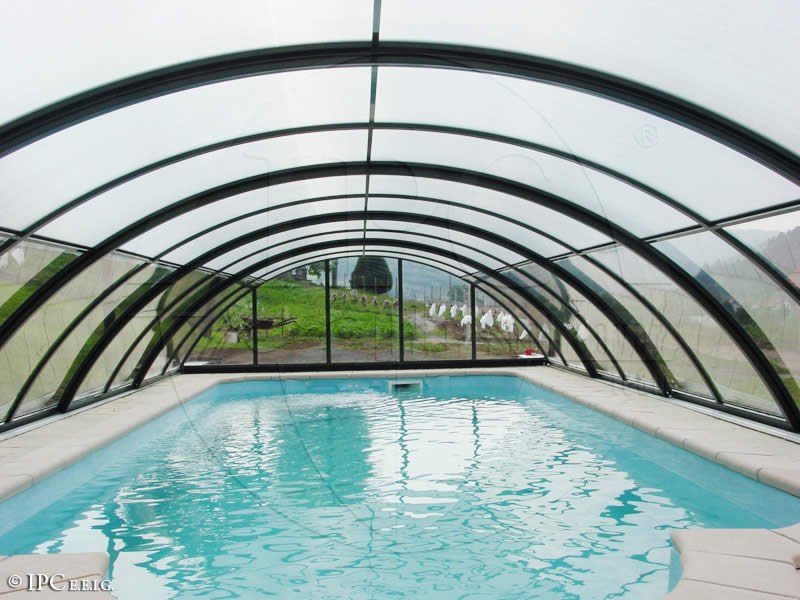

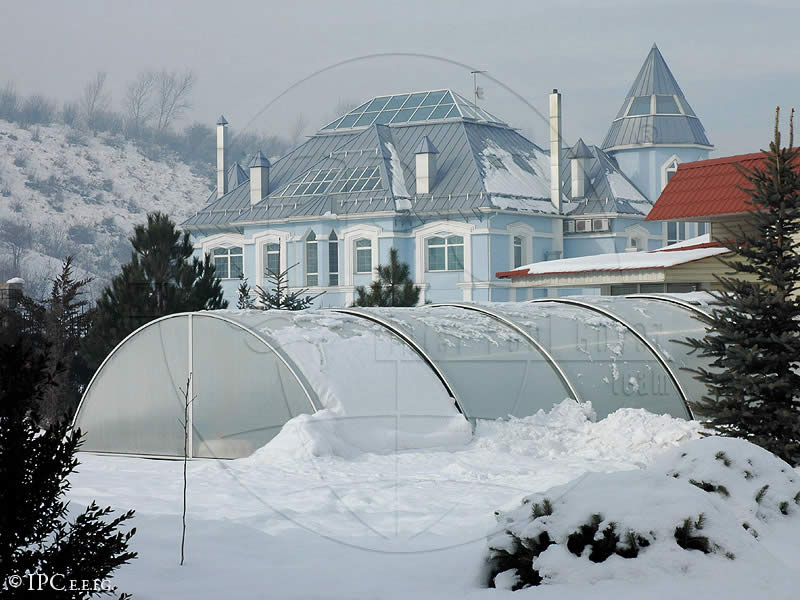

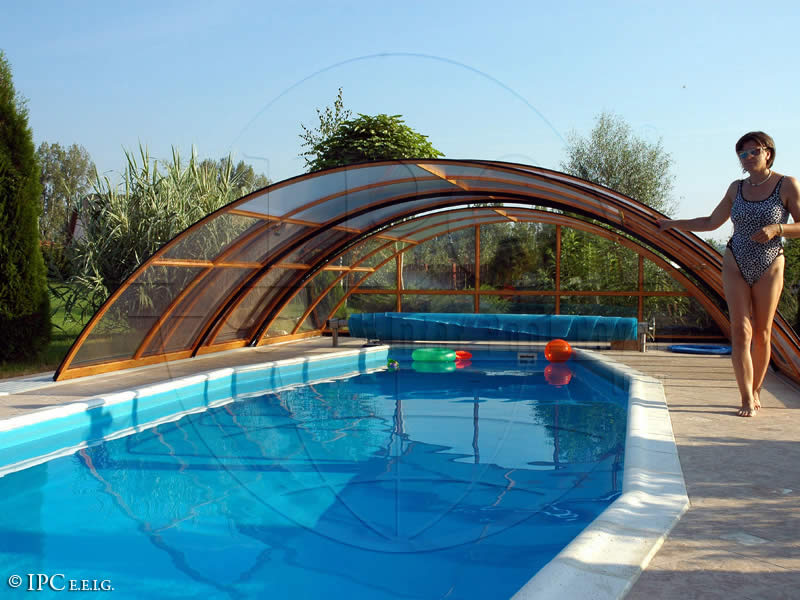

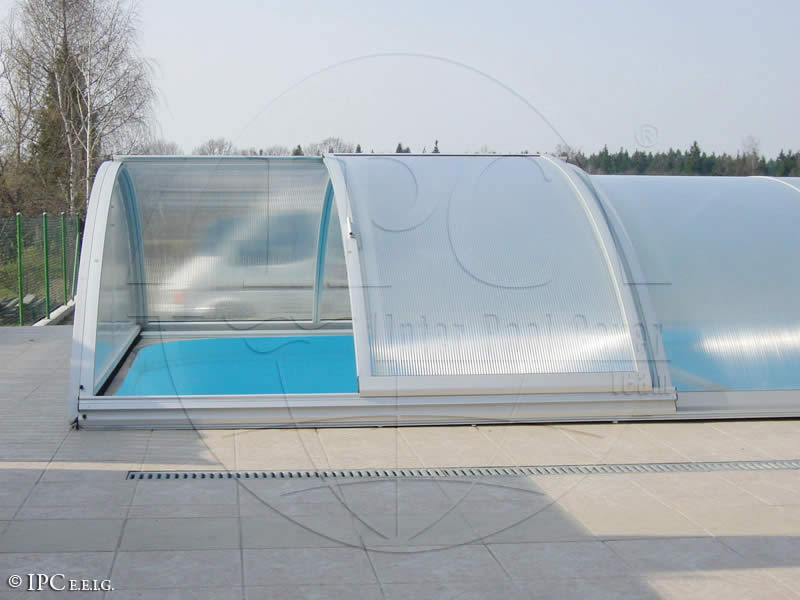

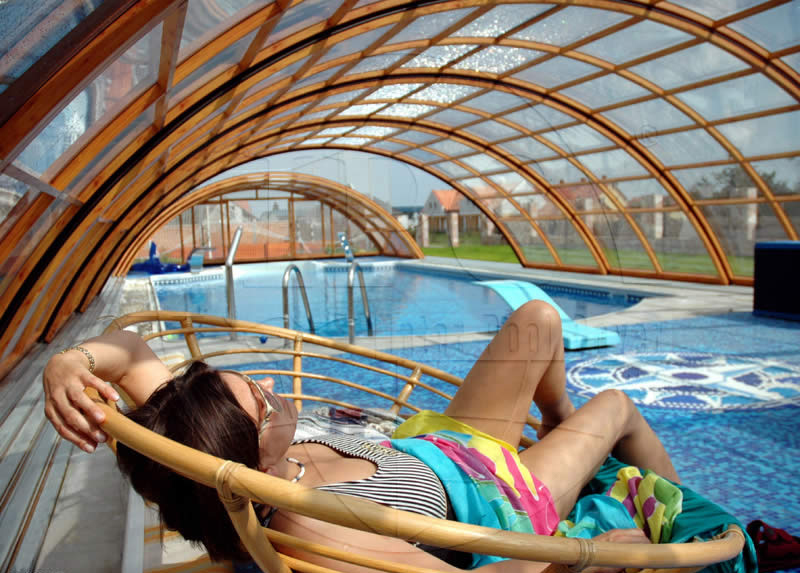

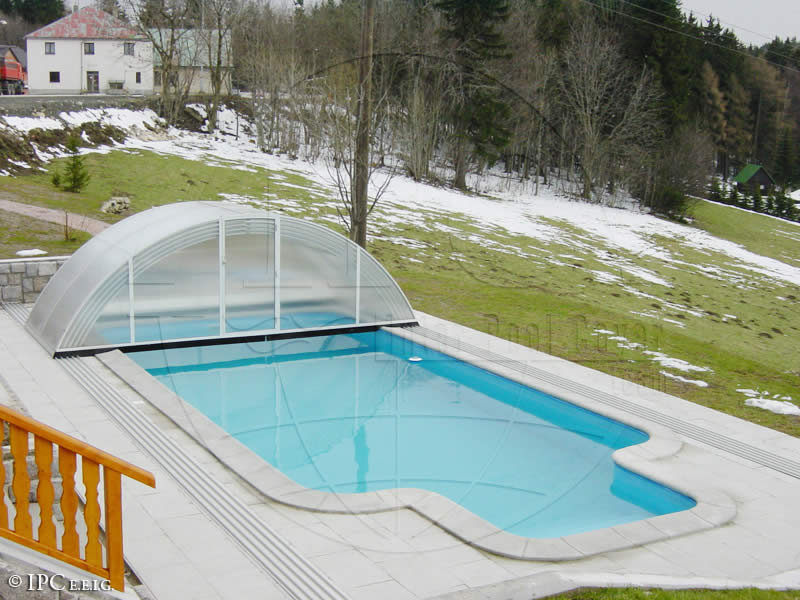

Regular, streamlined shape, “soft” line. Fits perfectly in an existing garden landscape, among bushes, conifers and ornamental plants. In wider enclosures the greater central height is convenient for changing before a swim or drying off afterwards. A sliding or swinging door may be fitted in the end walls and a sliding one in the side walls of the highest segment.

Sizes Available:

Width: 2.5m - 9.0m
Length: 4.2m - 16.00m
Height: 0.8m - 2.8m
Number of Segments: 2 - 7

STANDARD FEATURES

Surface of profiles:

nnatural elox C-O (silver), colors: white RAL 9010, beige RAL 1015, green RAL 6009, anthracite DB 703

Polycarbonate:

twin-wall transparent NO DROP, thickness 10 mm, UV protection on one side, U = 3,1 W/m²K

Leading lines:

STANDARD - height 28 mm, natural elox or powder painting in beige
PROGRES - height 15 mm, natural elox or beige RAL 1015

leading lines in the length of an enclosure

The front and back face made from aluminium profiles and polycarbonate

1 door

Sealing brushes on faces up to height 150 mm

Automatic locking system of segments, type STANDARD


PREMIUM FEATURES

The whole enclosure can be produced also from following types of polycarbonates:

• Polycarbonate 10 mm, quad-wall, transparent with UV protection on one side, U = 2,5 W/m²K
• Polycarbonate 10 mm, twin-wall, light blue with UV protection on one side, U = 3,1 W/m²K
• Polycarbonate 10 mm, twin-wall, green, with UV protection on one side, U = 3,1 W/m²K
• Polycarbonate 10 mm, twin-wall, smoked, with UV protection on one side, U = 3,1 W/m²K
• Polycarbonate 4 mm compact, transparent, with UV protection on both sides, U = 5,4 W/m²K

Combination of a compact polycarbonate 4 mm and a twin-wall polycarbonate 8 mm transparent

• Polycarbonate 4 mm in the front and back face, polycarbonate 8 mm in lateral sides and roof
• Polycarbonate 4 mm in the front and back face, in lateral sides up to 1/4 of arch, polycarbonate 8 mm in roof

Wood imitation of aluminium profiles

• Wood imitation

Leading lines:

• COMFORT with automatic anchoring system COMFORT including system CATUS
  (Surface natural elox C-O silver, beige RAL 1015)

PREMIUM FEATURES

• Extra door in face, sliding or opening
• Double shifting, opening door
• Lateral door
• Ventilating door
• Lift up part in face; another face modifications
• Lockable handle
• Lift up brushes
• Safety lock of the pool enclosure FORTIS, INNOX or ARX

Heightening of an enclosure

• Heightening up to 100 mm
• Heightening for every additional 100 mm
